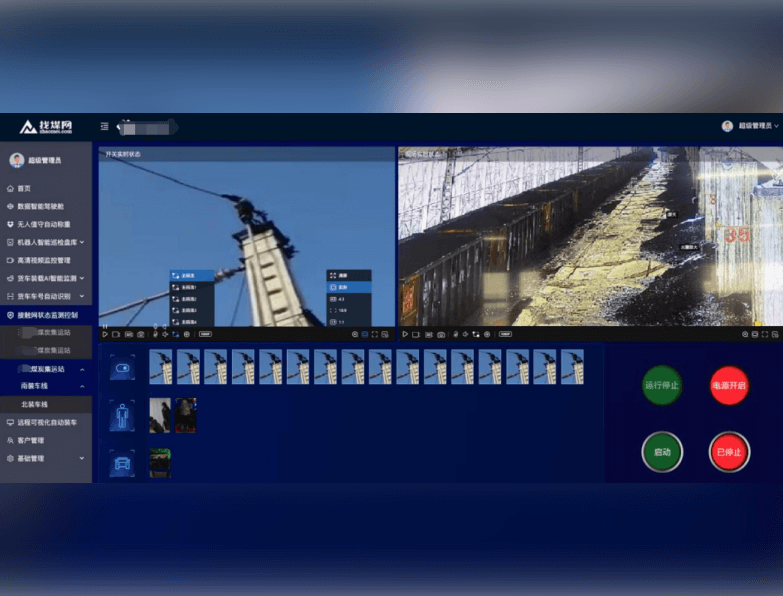

Railway Contact Network Status Monitoring System
Use PLC technology, Huawei AI high-definition cameras, and ModelArts for model training and algorithm development to intelligently identify the closed status of the catenary, the presence of people in fenced areas under railway tracks, and dangerous areas.
When operating the closing switch remotely, ensure that the closing button operation is effective to prevent Misoperation.
- Functional Composition
- 1、Identify the closed state of the catenary
- 2、Hazardous area monitoring, personnel monitoring
- 3、Pantograph video surveillance
- 4、Spark monitoring
- 5、Remote control, security monitoring
- 6、Contact line geometric parameter detection

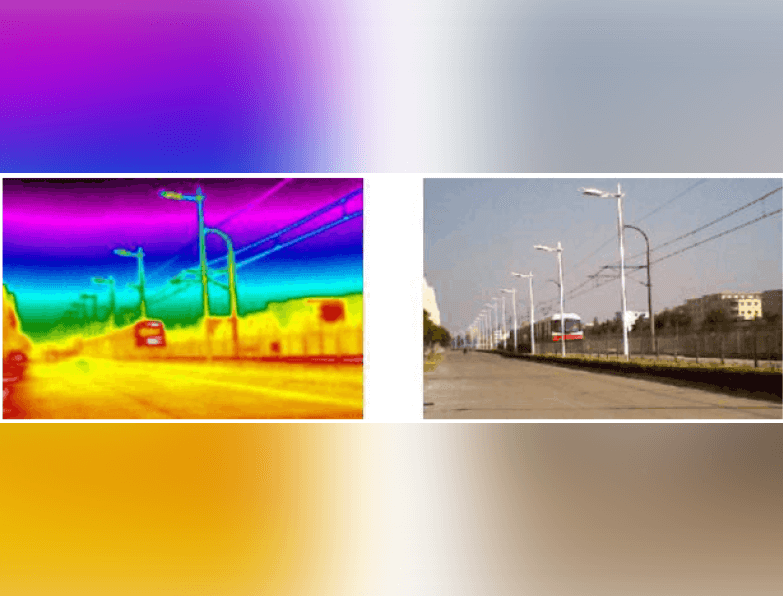

- 7、Temperature measurement of the pantograph network
- 8、Real-time fault alarm
- Product Value
- 1、Replace manual inspection and monitoring to improve safety factor
- 2、Improve detection and monitoring accuracy
- 3、Reduce downtime and improve transportation efficiency
- 4、Instantly lock fault information to reduce response time
